Description
Cathtect USA gives integrity teams a modern toolset that legacy decouplers were never designed to support.
The SSD with Survey Isolation Switch is engineered for one purpose: deliver accurate survey data without compromising protection. Standard solid-state decouplers contain reactive elements that distort CIS/DCVG waveforms, forcing technicians to remove or bypass the device – an approach that introduces safety risks, increases survey time, and disrupts AC mitigation.
Cathtect’s survey-ready architecture solves this by isolating only the reactive components while keeping the DC protection path active. The result is a clean, undistorted waveform, continuous CP protection, and safer field operations.

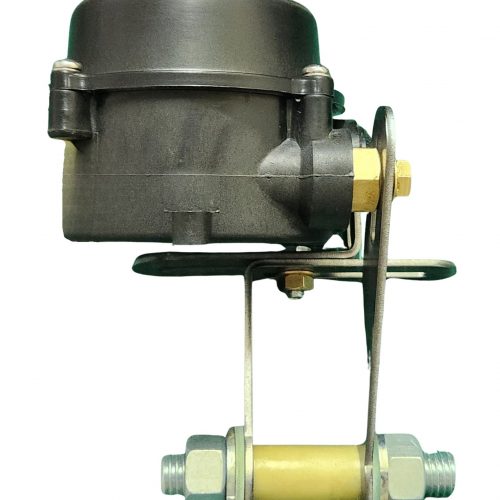

The integrated switch is double-insulated, fault-rated, and designed with arc-diffusion chambers and venting to protect operators during actuation. Positioned at the test-station terminal board, it provides fast, safe access without handling live hardware.
Built on the same advanced filtering platform as the hazardous SSD and DCD, the SSD + Switch ensures stable AC mitigation, low impedance, and predictable performance – now with survey-optimized control.
*Please use the Filter option to narrow specifications, or browse the table list of standard SSD decoupler units we offer.
Brochures:
Solid-State Decoupler Data Sheet
Additional Information:
AC Mitigation Part 1
AC Mitigation Part 2
Specifications:
Electrical Performance
- AC fault current ratings (30 cycles): 1.2 kA, 3.7 kA, 5 kA, 7 kA, 10 kA
- DC clamping voltage ranges: +2V, +1V, –2V, –3V, –4V, –6V
- AC steady-state current: 45 A @ 50/60 Hz
- Low AC impedance: ~3 mΩ typical, 0.04 Ω guaranteed
- Lightning impulse rating: 100 kA (10/350 µs)
- High steady-state DC current drain
Isolation Switch Performance
- Fault-rated to match decoupler current capacity
- Double-insulated operator interface
- Arc-diffusion chamber and venting for safe actuation
- Isolates reactive elements only – DC path remains active
- Mounted externally in Fat Fink test station for easy access
Mechanical & Environmental
- Fat Fink aluminum test-station enclosure
- Terminal polarity clearly marked
- Unlimited switching cycles
Video:
To order, please request a quote using the add to quote button above or get in touch with us directly using our contact form or giving us a call.
| Option | AC Fault | Amp | DC Threshold Voltage |
|---|---|---|---|
|
SSD 1.2kA, +2,-2V
|
1.2kA | 45 | +2,-2V |
|
SSD 1.2kA, +1,-3V
|
1.2kA | 45 | +1,-3V |
|
SSD 1.2kA, +1,-4V
|
1.2kA | 45 | +1,-4V |
|
SSD 1.2kA, +1,-6V
|
1.2kA | 45 | +1,-6V |
| SSD 2kA, +2,-2V | 2kA | 45 | +2,-2V |
| SSD 2kA, +1,-3V | 2kA | 45 | +1,-3V |
| SSD 2kA, +1,-4V | 2kA | 45 | +1,-4V |
| SSD 2kA, +1,-6V | 2kA | 45 | +1,-6V |
| SSD 3.7kA, +2,-2V | 3.7kA | 45 | +2,-2V |
| SSD 3.7kA, +1,-3V | 3.7kA | 45 | +1,-3V |
| SSD 3.7kA, +1,-4V | 3.7kA | 45 | +1,-4V |
| SSD 3.7kA, +1,-6V | 3.7kA | 45 | +1,-6V |
| SSD 5kA, +2,-2V | 5kA | 45 | +2,-2V |
| SSD 5kA, +1,-3V | 5kA | 45 | +1,-3V |
| SSD 5kA, +1,-4V | 5kA | 45 | +1,-4V |
| SSD 5kA, +1,-6V | 5kA | 45 | +1,-6V |
| SSD 7kA, +2,-2V | 7kA | 45 | +2,-2V |
| SSD 7kA, +1,-3V | 7kA | 45 | +1,-3V |
| SSD 7kA, +1,-4V | 7kA | 45 | +1,-4V |
| SSD 7kA, +1,-6V | 7kA | 45 | +1,-6V |
| SSD 10kA, +2,-2V | 10kA | 45 | +2,-2V |
| SSD 10kA, +1,-3V | 10kA | 45 | +1,-3V |
| SSD 10kA, +1,-4V | 10kA | 45 | +1,-4V |
| SSD 10kA, +1,-6V | 10kA | 45 | +1,-6V |
