Decoupling, AC Mitigation & Isolation

Cathtect USA offers a number of Cathodic Protection decoupling and isolation devices for  DC & AC Voltage Mitigation, Effective management of Stray Currents in various Applications and conditions. namely: Solid-state decoupling devices, Voltage limiting devices, Surge arrestors, isolating flange kits as well as grounding and cable accessories. Each product is made to our client’s requirements to ensure controlled electrical isolation of buried pipelines, tanks and structures. We do what it Takes!

OVP

Over Voltage Protector (OVP)

Over Voltage Protector (OVP) is an innovative solid-state technology designed to control and preserve Cathodic Protection currents while limiting and mitigating overvoltages or stray currents. Its unique 3″ IP68/NEMA 6P housing ensures easy installation, access, and safety.

Features:

  • Smaller and more economical than Solid State Decoupler technology
  • Wide range of options to suit specifications and design requirements
  • Sharp turn-on feature
  • Solid-state technology
  • Short circuit to ground – “effective ground fault path”
  • Limited application
  • Easy installation and optional accessories
  • Instantaneous off
  • Multiple operations
  • Rated for AC fault current and lightning surge current
  • Not to be used where induced AC voltage is present
Over Voltage Protector (OVP) is an innovative solid-state technology designed to control and preserve Cathodic Protection currents while limiting and mitigating overvoltages or stray currents.
Decoupler in Fat Fink CP StationDecoupler in Fat Fink CP Station

Fat Fink Solid State Decoupler (SSD) with Integrated Capacitance Isolator

Innovative Solid-State technology that controls and preserves Cathodic Protection currents, limits and mitigates overvoltage’s or stray currents. Uniquely housed in a 6″ Fat Fink Test Station for easy Installation, access and safety.

Features:
  • Smaller and more economical than Polarization Cell Replacement technology
  • Wide range of options to suit specifications and design requirements
  • Sharp Turn on Feature
  • Solid State Technology
  • Short Circuit to Ground – “effective ground fault path”
  • Limited application
  • Easy installation and optional accessories

*Please use the Filter option below to narrow specifications, or browse the table list of standard SSD decoupler units we offer.

Innovative Solid-State technology that controls and preserves Cathodic Protection currents, limits and mitigates overvoltage’s or stray currents.

Polarization Cell Replacement (PCR) Hazardous

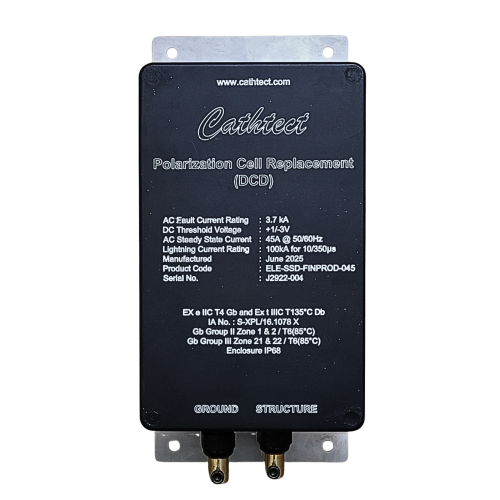

Polarization Cell Replacement (SSD-DCD) Decoupler

Polarization Cell Replacement (SSD-DCD): Innovative technology that controls and preserves Cathodic Protection currents, limits and mitigates overvoltages or stray currents.

“Non-Shorting” retains the applied voltage at the threshold level whilst in limiting mode action in compliance with NFPA 70 Section 250 for controlling and preserving Cathodic Protection currents on pipeline/ structure whilst limiting and mitigating & DC overvoltages. The additional patented feature removes capacitive corruption of DCVG & CIPS survey signals whilst preserving surveyor safety.

Features:
  • Largest and most robust unit in the Decoupler Range.
  • Wide range of options to suit specifications and design requirements.
  • Volt Drop across the Device – ( does not short circuit)
  • Suitable for all applications
  • Easy installation and optional accessories

We are also happy to engage with you on your specific needs should they not be listed here. We have been manufacturing CP Equipment since 1992.

Other voltage threshold ranges available on request.

Polarization Cell Replacement devices conduct once a predetermined voltage has been attained. Once conducting, they maintain the predetermined volt drop across the device.

DecouplersPolarization Cell Replacement (PCR) Hazardous

Solid State Decoupler (SSD)

Innovative Solid-State technology that controls and preserves Cathodic Protection currents, limits and mitigates overvoltages or stray currents.

Features:
  • Smaller and more economical than Polarization Cell Replacement technology
  • Wide range of options to suit specifications and design requirements
  • Sharp Turn on Feature
  • Solid State Technology
  • Short Circuit to Ground – “effective ground fault path”
  • Limited application
  • Easy installation and optional accessories

*Please use the Filter option below to narrow specifications, or browse the table list of standard SSD decoupler units we offer.

SSD’s functions as a DC voltage level clamping device in buried pipeline and storage tank systems. It can, at the same time, mitigate AC voltage.

Decoupler Isolators

Decoupler Isolators

Decoupler Isolation can be utilized to Improve your CP Survey accuracy & Personnel Safety out in the field. The Decoupler Isolation can be built into Cathtect Decoupling devices or offered as a secondary addition within the decoupler circuit to improve your control in the field. Ask for our implementation design options.

Features:
  • The isolation device carries the same current capacity as the device to which it is fitted. (Option to be selected during order placement, to allow incorporation into the device at assembly.)
  • The isolation device is a double insulation device complete with switching ark diffusion, chamber shrouding, venting the harmful flame and gasses away from the operator.
  • No handling of live hardware or exposure to arcing whilst operating the isolator. The operator actuated toggle is double insulated from the isolated components.
  • Available in a separate enclosure where 3rd party Decoupling devices or Decouplers have been installed prior to the isolation requirement being evident.
    (Isolator in this instance must be matched to the existing Decoupler fault current handling capacity.)

Cathtect has developed a Decoupler Isolator to effectively and easily eliminate decoupler interference for surveys whilst maintaining safety.

Marine Decoupler

Marine Decoupler

The solid-state 30AMP or 50AMP De-coupling devices are a solid-state DC isolation/AC grounding devices designed for Marine applications in cathodically protected equipment.

  • The units are easily mounted and connected to the ground wire for yachts and boats to eliminate anode current loss to the AC dock power grounding system saving up to 40% of the anode current loss.
  • This De-coupling device will save you on premature anode replacement.

Solid-state DC isolation/AC grounding devices designed for Marine applications in cathodically protected equipment.

Voltage Limiting Device (VLD)

Voltage Limiting Device (VLD)

Voltage limiting and safety for pipelines and touch potentials.

Over voltage limiting technology that controls and preserves Cathodic Protection currents, limits and mitigates overvoltages and keeps your staff safe whilst working at test stations.

Typical discharge currents are 1,2kA, 3,7kA, 5kA and 14kA. Hazards can be mitigated by suitable enclosure and application selection.

Over voltage limiting technology that controls and preserves Cathodic Protection currents, limits and mitigates overvoltages and keeps your staff safe whilst working at test stations.

Zinc Ribbon AnodeGradient Control mat

Gradient Control Mat

Gradient control and earthing mat for CP and AC mitigation.

Range of Mat options and types

  • Copper Mats, Wire & Grids.
  • Zinc Ribbon
  • Galvanized Steel Mats

Ground control mats are ideal in situations that have voltage differences between structures. Gradient control mats are installed around above ground pipeline structures to protect workers from potentially hazardous (Step & Touch) voltages that can be present on pipelines and metallic Structures.

Features and Characteristics

  • Low-cost design
  • Fast construction using 4ft x 8ft sheets and exothermic welding
  • Avoids handling and bending of zinc ribbon
  • Low inductance design limits step and touch potentials due to lightning and AC faults
  • Data available on design life and anode selection.
Add to Quote

Gradient control mats are ideal in situations that have voltage differences between structures which could potentially be hazardous for workers.
