Over Voltage Protector (OVP)

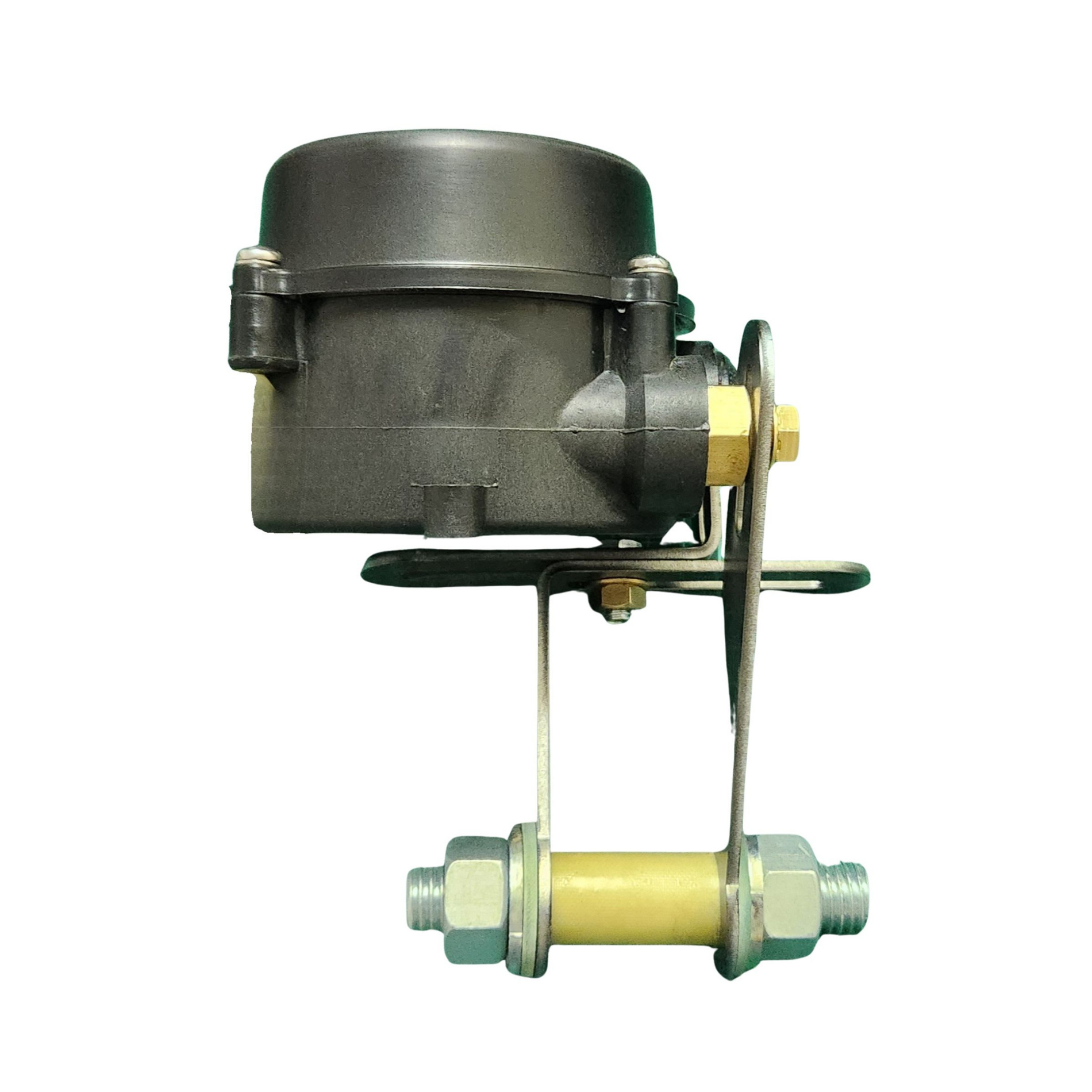

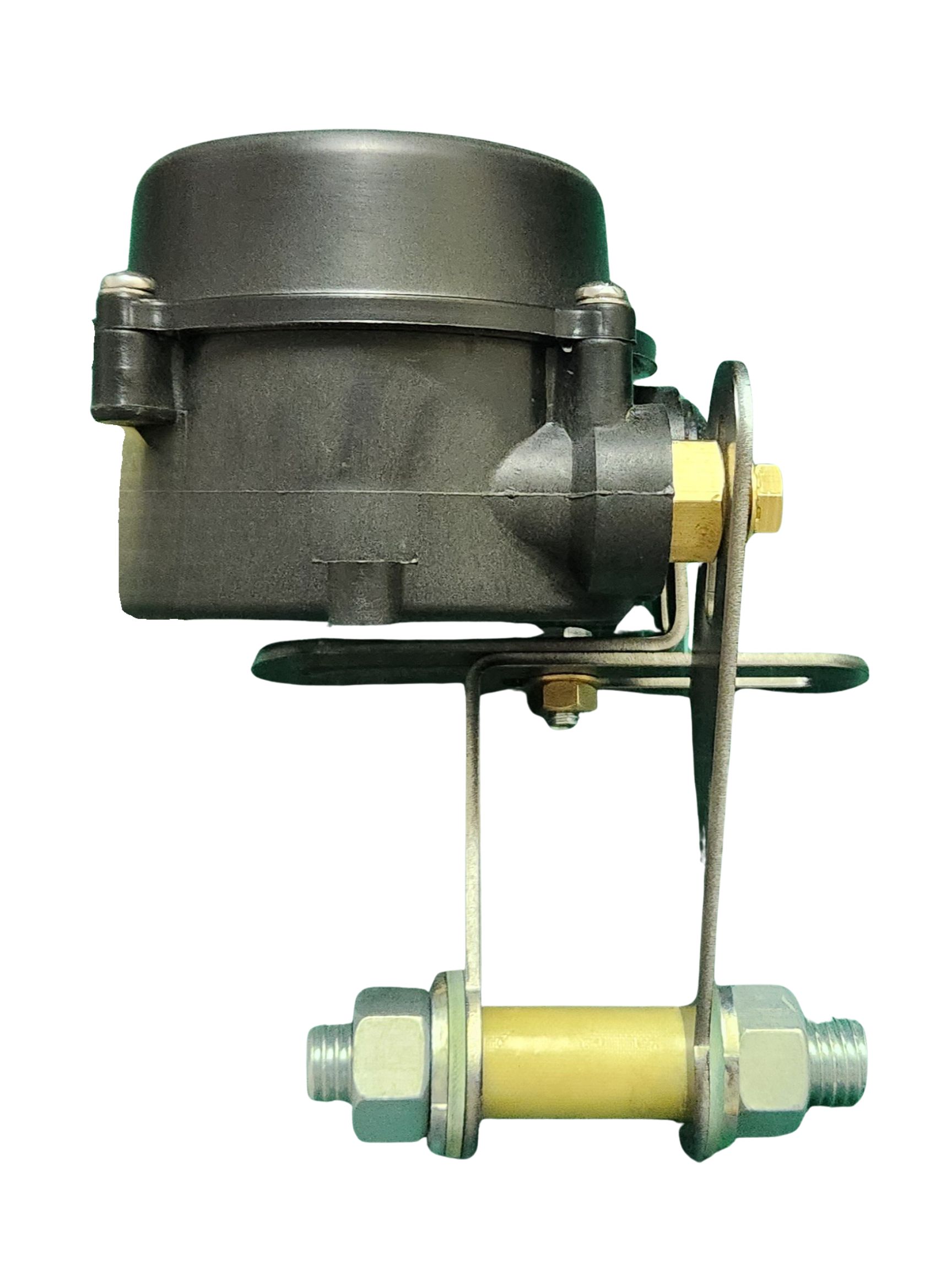

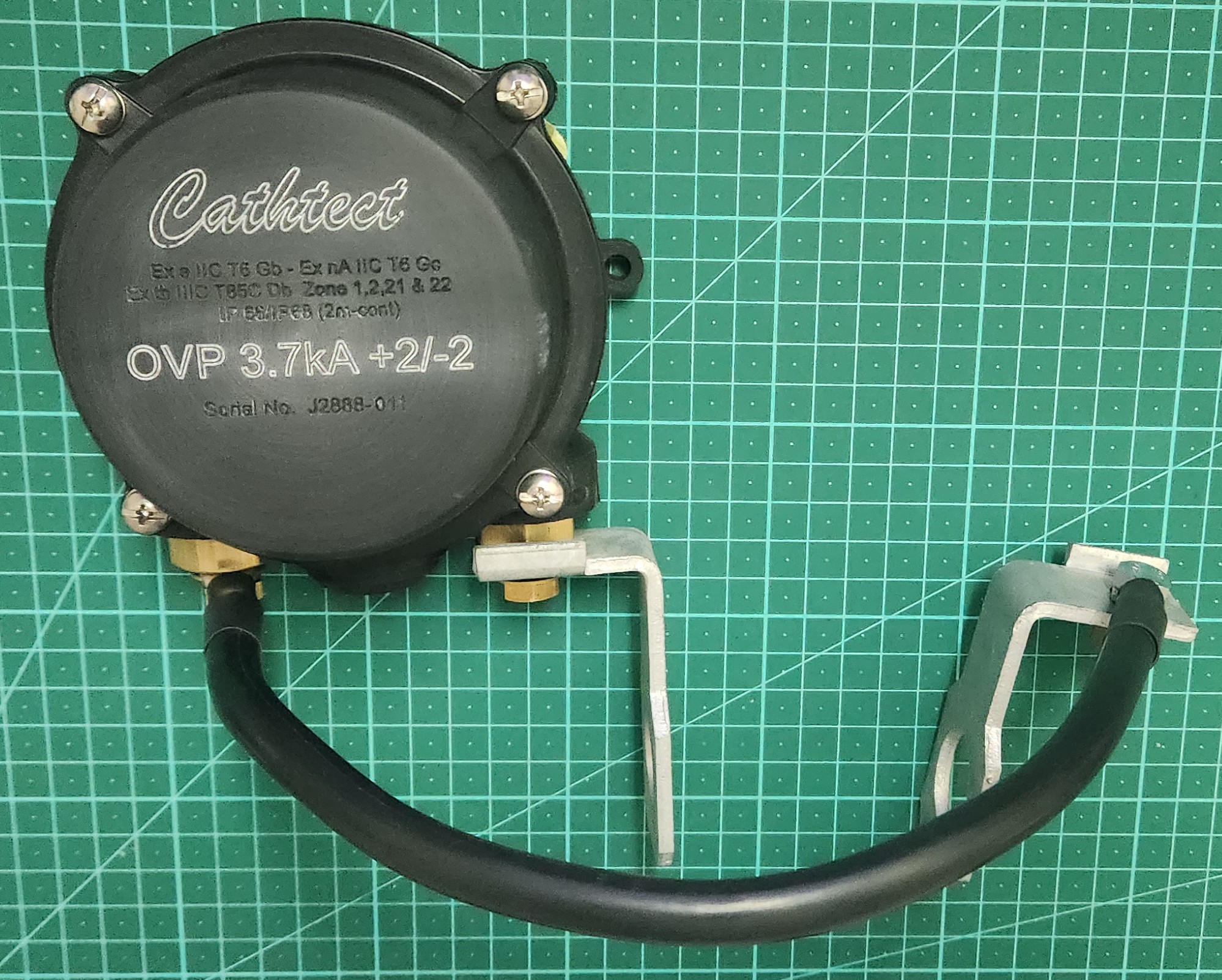

Over Voltage Protector (OVP) is an innovative solid-state technology designed to control and preserve Cathodic Protection currents while limiting and mitigating overvoltages or stray currents. Its unique 3″ IP68/NEMA 6P housing ensures easy installation, access, and safety.

Features:

  • Smaller and more economical than Solid State Decoupler technology
  • Wide range of options to suit specifications and design requirements
  • Sharp turn-on feature
  • Solid-state technology
  • Short circuit to ground – “effective ground fault path”
  • Limited application
  • Easy installation and optional accessories
  • Instantaneous off
  • Multiple operations
  • Rated for AC fault current and lightning surge current
  • Not to be used where induced AC voltage is present
Add to Quote
Category: SKU: N/A

Description

Overview

To order, please request a quote using the add-to-quote button above or get in touch with us directly using our contact form or by giving us a call.

Please use the Filter option below to narrow specifications, or browse the table list of standard OVP units we offer.

AC Fault Options

  1. 1.2kA (30 Cycles)
  2. 3.7kA (30 Cycles)
  3. 5kA (30 Cycles)
  4. 14kA (30 Cycles)

DC Threshold Options (OVP)

  1. (+2/-2VDC)
  2. (+1/-3VDC)
  3. Other (Customizable Upon Request)

Specifications

Specifications:

  • Available with AC fault current rating: 1.2kA, 3.7kA, 5kA, or 14kA (30 Cycles)
  • DC clamping voltage range: +2V/-2V, +1V/-3V (Standard Range; Custom Available Upon Request)
  • High steady state DC current drain
  • Lightning impulse current rating: Class 1 – 100kA for 10/350µs
  • Lightning DC spark over voltage: -600V
  • IP68 Submersible design up to two meters in depth
  • Suitable for Exe Hazardous Areas 1 and 2

Additional information

AC Fault Options

1.2kA (30 Cycles), 14kA (30 Cycles), 3.7kA (30 Cycles), 5kA (30 Cycles)
DC Threshold Options (OVP)

(+1/-3VDC), (+2/-2VDC), Other
