About Cathtect USA

Cathtect USA is a proud distributor of a wide range of standard and customizable Test Stations for all Cathodic Protection testing point applications.

Our Knowledgeable team can help you with product selection and ensure you have adequate quantities to meet all your Cathodic protection Grounding and Earthing needs. Contact us to learn more!

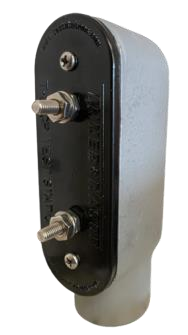

T-3 Test Station Terminals

Model T-3 CP Test Stations come standard with the unique binding post with set screw. This binding post allows for rapid wire connections on wires as big as 6 AWG.

Read More
Each CP Test Station comes with five (5) nickel plated binding posts, and up to eleven (11) binding posts on custom orders(See Quote Page for custom orders). features a clear terminal board made of a tough, fire resistance polycarbonate resin. The clear terminal allows you to view both sides of the terminal board without obstruction.

T-3 Test Station Black ($29.95) 0

T-3 Test Station Orange ($29.95) 0

T-3 Test Station Yellow ($29.95) 0

View More options
T-3 Test Station Red ($29.95) 0

T-3 Test Station Blue ($29.95) 0

T-3 Test Station Green ($29.95) 0

T-3 Test Station White ($29.95) 0

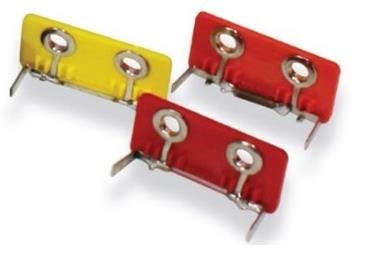

Test Station Shunts

Used for determining current levels on CP systems, using Ohms Law as a Cathodic protection connection point.

Read More

  • Fits 1” on center terminal board
  • Use on T-1, T-2, T-3, T-4, AG-1, AG-3
  • Made of strong polycarbonate material
  • UV Stabilized color protection
  • High impact resistance
  • Fire resistant


Test Station Shunt - Red, 0.1 Ohm, 2Amp ($7.00) 0

Test Station Shunt - Yellow, 0.01 Ohm, 8Amp ($7.00) 0

Test Station Shunt - Orange, 0.001 Ohm, 25Amp ($7.00) 0

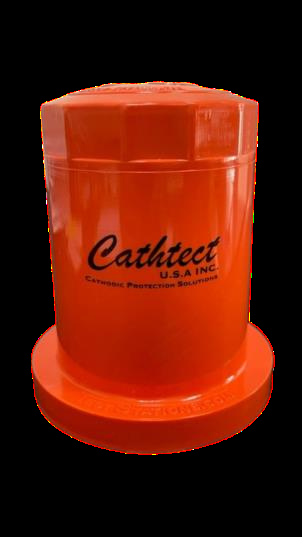

AG-3 Test Station Terminals

Flush Mount Test Stations – Model AG 3, Fits 6” Riser Pipe (5.5” ID) 8.75” width x 5” length for at grade installations whilst allowing easy connections and access to various applications.

Read More

  • At-Grade & Below-Grade CP Test Stations,
  • Suitable for low traffic areas such as easements, sidewalks, tank farms, etc.
  • Options: Black, Orange & Yellow
  • High-strength proprietary polypropylene material with a non-conductive body.


AG-3 Test Station Black ($62.00) 0

AG-3 Test Station Orange ($62.00) 0

AG-3 Test Station Yellow ($62.00) 0

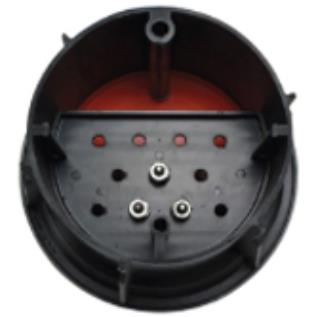

AG-1 Test Station Terminals

Flush Mount Test Stations – Model AG 1, Fits 4” Riser Pipe (3.5” ID) 5.55” width x 7.875” Length for at grade installations whilst allowing easy connections and access to various applications.

Read More

  • At-Grade & Below-Grade CP Test Stations,
  • Suitable for low traffic areas such as easements, sidewalks, tank farms, etc.
  • Options: Black, Orange & Yellow
  • High-strength proprietary polypropylene material with a non-conductive body.


AG-1 Test Station Black ($65.00) 0

AG-1 Test Station Orange ($65.00) 0

AG-1 Test Station Yellow ($65.00) 0

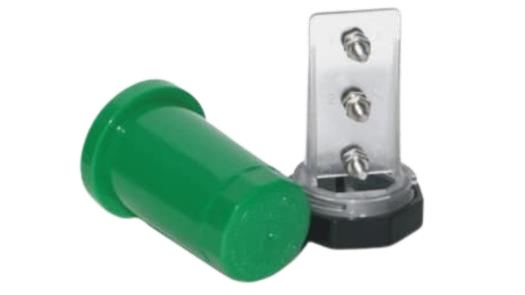

T-2 Test Station Terminals

Each test station is threaded (NPT) to fit existing metal risers, 3/4” and 1” OD.

Read More

  • Seven colors are available from stock and custom colors can be ordered.
  • New Cover design allows multiple terminal layouts.
  • New design also allows retrofit of terminal cover to metal cases.
  • Attachment clips lay in a channel so clips do not spin while attaching terminal board.


T-2 Test Station Black ($15.00) 0

T-2 Test Station Orange ($15.00) 0

T-2 Test Station Yellow ($15.00) 0

View More options
T-2 Test Station Red ($15.00) 0

T-2 Test Station Blue ($15.00) 0

T-2 Test Station Green ($15.00) 0

T-2 Test Station White ($15.00) 0


T-1 Test Station Terminals

Each test station has a clear terminal board and is made with fire resistant material. Units are low profile and have a super grip top and binding posts with fiber washers.

Read More

  • 7 different Colors available to meet your specification.
  • Optional accessories including Riser pipe reducer, bonding straps and various size shunts also available upon request.


T-1 Test Station Black ($15.00) 0

T-1 Test Station Orange ($15.00) 0

T-1 Test Station Yellow ($15.00) 0

View More Options
T-1 Test Station Red ($15.00) 0

T-1 Test Station Blue ($15.00) 0

T-1 Test Station Green ($15.00) 0

T-1 Test Station White ($15.00) 0
